RF POWER PILL -- PP60

RF POWER PILL -- PP60

                                                            **** UPDATE****

Now Is The Time To Bring Our Great Sport Into The New Millenia ,

And To Do So Requires A New Source Of Power.

THE “RF POWER PILLS” ARE HERE !!!!!!

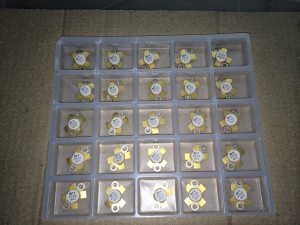

The PP60 RF Transistor Is A Ruggedized Military Type Silicon NPN RF Power Transistor

It Is Designed For High Frequency RF Use

Covering 2 ~ 30MHz AM/FM/SSB Linear Power Amplifier Applications

It's Made With The Highest Quality Ceramic Package

And With Gold Metallization Throughout The Package

The PP60 Is Conservatively Rated At 60w PEP@13.8vdc

One Of The Greatest Things About This New Tramsistor Is,

That In Most Properly Designed Circuits,

These Transistors Are A Direct Drop-In Replacement For The sd1446

Although Some Circuits May Need To Be Slightly Tweaked.

The Typical Drive Levels For This Transistor Are As Follows;

!!!!! PLEASE KEEP IN MIND, THESE ARE SAFE RATINGS, NOY MAX RATINGS !!!!

1w-2w Carrier Power Input Per Transistor

10w-15w PEP Swing Input Per Transistor

This Will Vary From Amp To Amp

The Good Rule Of Thumb Is To Set The

MAX OUTPUT FROM AMP PER TRANSISTOR

(NOT INPUT DRIVE)

At 15w Dead Key Carrier PER TRANSISTOR

And Remember, That Is The

POWER COMING OUT OF THE AMP WHEN KEYED.

So With These Transistors, You Should Be Putting Out

A MAX DEAD KEY FROM THE AMP of

2 Transistors Times 15w = 30W Dead Key OUTPUT FROM AMP

4 Transistors Times 15w = 60W Dead Key OUTPUT FROM AMP

6 Transistors Times 15W = 90W Dead Key OUTPUT FROM AMP

And So On And So On

Now That Is The Recommended MAX Dead Key Output,

Less Will Not Hurt, But More May Be Putting Yourself

Into The Danger Zone

These Transistors Have Been Tested @17vdc At The Collector,

But We Recommend A Max Of 15.5vdc

There Are NO Returns On ANY Transistors At All

Once They Are Removed From The Original Package

And There Is No Warranty On Transistors

So Please, If You Do Not Feel Comfortable Replacing Transistors

On Your Own, Seek Out Someone Who Is,

Because Once You Take Them Out Of The Sealed Package,

They’re Yours.




Price: $27.99
Quantity Pricing
Quantity:
Please Remember That Grounding Is The Most Important Part Of Any System.
