THE “RF POWER PILLS” ARE HERE !!!!!!

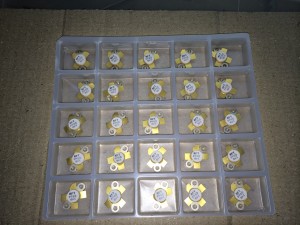

The PP60 RF Transistor Is A Ruggedized Military Type Silicon NPN RF Power Transistor

It Is Designed For High Frequency RF Use

Covering 2 ~ 30MHz AM/FM/SSB Linear Power Amplifier Applications

It's Made With The Highest Quality Ceramic Package

And With Gold Metallization Throughout The Package

The PP60 Is Conservatively Rated At 60w PEP@13.8vdc

One Of The Greatest Things About This New Tramsistor Is,

That In Most Properly Designed Circuits,

These Transistors Are A Direct Drop-In Replacement For The sd1446

Although Some Circuits May Need To Be Slightly Tweaked.

The Typical Drive Levels For This Transistor Are As Follows;

!!!!! PLEASE KEEP IN MIND, THESE ARE SAFE RATINGS, NOY MAX RATINGS !!!!

1w-2w Carrier Power Input Per Transistor

10w-15w PEP Swing Input Per Transistor

This Will Vary From Amp To Amp

The Good Rule Of Thumb Is To Set The

MAX OUTPUT FROM AMP PER TRANSISTOR

(NOT INPUT DRIVE)

At 15w Dead Key Carrier PER TRANSISTOR

And Remember, That Is The

POWER COMING OUT OF THE AMP WHEN KEYED.

So With These Transistors, You Should Be Putting Out

A MAX DEAD KEY FROM THE AMP of

2 Transistors Times 15w = 30W Dead Key OUTPUT FROM AMP

4 Transistors Times 15w = 60W Dead Key OUTPUT FROM AMP

6 Transistors Times 15W = 90W Dead Key OUTPUT FROM AMP

And So On And So On

Now That Is The Recommended MAX Dead Key Output,

Less Will Not Hurt, But More May Be Putting Yourself

Into The Danger Zone

These Transistors Have Been Tested @17vdc At The Collector,

But We Recommend A Max Of 15.5vdc

There Are NO Returns On ANY Transistors At All

Once They Are Removed From The Original Package

And There Is No Warranty On Transistors

So Please, If You Do Not Feel Comfortable Replacing Transistors

On Your Own, Seek Out Someone Who Is,

Because Once You Take Them Out Of The Sealed Package,

They’re Yours.

--->ABOVE PHOTOS ARE STOCK PHOTOS, ITEM LOOKS & SIZE VARY BY AMP RATING<---

-ALL UNITS NOW COME WITH ADJUSTABLE VOLTAGE STANDARD

--This Is Our Series Of Adjustable Or Non-Adjustable, Regulated Power Supplies

--They Are BAD TO THE BONE, And Supply You GOBS Of Amps

--Each Unit Comes Standard With A Digital Volt Meter !!!!!

--To Keep You Swinging That XFORCE Hammer With Authority !!!

--These Monsters Utilize Internal Load Sharing Technology Which Allows Us

--To Offer To You A Rugged And Robust Unit That Will Last A Lifetime.

--Unit Sizes Are

--100amp --200amp --300amp

--400amp --500amp --750amp --1000amp --1500amp

--2000amp --2500amp --3000amp --3500amp

--100a & 200a Units Are 120 Volt Standard, 220/240 Volt Optional

--300a And Bigger units are 220/240 only.

--750a And Bigger Units Are Designed To Be Hardwired ONLY, No Plug.

--XFORCE --> RAISING THE BAR FOR YOU AGAIN..... AGAIN.... AGAIN !!

===>Variable Voltage Range Is From Approximately 11 to 16 Volts DC

                                   (The range will vary slightly from unit to unit.)

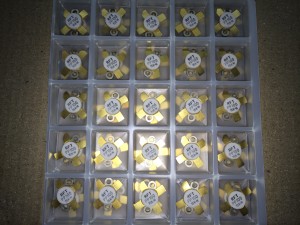

The PP100 RF Transistor Is A Ruggedized "Military Type" Silicon NPN RF Power Transistor

It Is Designed For High Frequency RF Use

Covering 2 ~ 30MHz AM/FM/SSB Linear Power Amplifier Applications

It's Made With The Highest Quality Ceramic Package

We Always Recommend A Max Of 15.5vdc For Safety, But Really, It's Up To You

**** And Just Like Anybody Who Sells Transistors,

There Are NO Returns On ANY Transistors At All

Once They Are Removed From The Original Package We Ship Them In

No Warranty On Transistors Due to The Facts,

That We Cannot Control How They Are Installed,

Or How They Are Abused.

So Please, If You Do Not Feel Comfortable Replacing Transistors On Your Own,

Seek Out Someone Who Is,

Because Once You Take Them Out Of That Sealed Package,

They’re Yours.

Once shipment comes in, we fully test and match the entire shipment.

Any quantity over 1pc will automatically come MATCHED AT NO EXTRA CHARGE !!!

This Is The Transistor Used In All Our Keying Circuits

Product:  	 Bipolar Small Signal & Power   	 Configuration: 	Single 	 Transistor Polarity: 	NPN 	 DC Current Gain hFE Min: 	35 @ 0.1mA @ 10V 	 Maximum Operating Frequency: 	300 MHz (Min) 	 Package / Case: 	TO-92 	 Collector- Emitter Voltage VCEO Max: 	40 V 	 Emitter- Base Voltage VEBO: 	6 V 	 Maximum DC Collector Current: 	0.6 A 	 Power Dissipation: 	625 mW 	 Maximum Operating Temperature: 	+ 150 C 	 Minimum Operating Temperature: 	- 55 C 	 Continuous Collector Current: 	600 mA

This Is The Regulator Chip We Use

When We Need To Regulate Control Voltages

3-Terminal 1A Positive Voltage Regulator

Output current 1A  12-15 Volt Thermal overload protection  Short circuit protection  Output transistor safe operating area protection
